[SCCM] Complete SCCM 2012 SQL Install Guide

Publié le par damcuvelier

SCCM 2012 SQL Install Guide

  • Execute Setup.exe from the SQL installation media, select New Installation

sccm 2012 sql install guide

  • Review and Click Next

sccm 2012 sql install guide

  • Select Enter Product Key and skip the proposed updates. We will install CU4, later

sccm 2012 sql install guide

  • Select SQL Server Feature Installation

sccm 2012 sql install guide

  • Select the Database Engine, Reporting Services and Management Tools features and specify the SQL installation directory. This is the directory for the program files and shared features

sccm 2012 sql install guide

  • Select Default instance and ensure that your instance is created on the SQL Volume

sccm 2012 sql install guide

  • Review and click Next

sccm 2012 sql install guide

  • Set all services to run as the SQL domain account that you created previously and set the services start up type to Automatic

sccm 2012 sql install guide

  • On the Collation tab, set the Database Engine to use SQL_Latin1_General_CP1_CI_AS

sccm 2012 sql install guide

  • In the Server Configuration tab, set the authentication mode to Windows Authentication and in the SQL Server Administrators add your SCCM Admins group

sccm 2012 sql install guide

  • In the Data Directories tab set your drive letters correctly for your SQL databases, Logs, TempDB, and backup

sccm 2012 sql install guide

  • In Reporting Service Configuration, Select Install only

sccm 2012 sql install guide

  • In Error Reporting, uncheck the box, Click Next

sccm 2012 sql install guide

  • Click Next

sccm 2012 sql install guide

  • Click Install

sccm 2012 sql install guide

  • Complete the installation by clicking Close

sccm 2012 sql install guide



SPN Creation

When you configure SQL Server to use the local system account, a Service Principal Name (SPN) for the account is automatically created in Active Directory Domain Services. When the local system account is not in use, you must manually register the SPN for the SQL Server service account.

Since we are using a domain account, we must run the Setspn tool on a computer that resides in the domain of the SQL Server. It must use Domain Administrator credentials to run.

Run both commands to create the SPN, Change the server name and account name in each commands.

  • setspn -A MSSQLSvc/yourservername:1433 yourdomain\SQLSA
  • setspn -A MSSQLSvc/yourserver.fullfqdn.com:1433 yourdomain\SQLSA

To verify the domain user SPN is correctly registered, use the Setspn -L command

  • setspn –L yourdomain\SQLSA

Apply SQL 2012 STD SP2 CU4

At the time of this writing, the latest SQL Cumulative Update is CU4. We will install it in order to have a updated SQL Installation.

sccm 2012 sql install guide

  • Leave default values, click Next

sccm 2012 sql install guide

  • Wait for Check File in Use and click Next

sccm 2012 sql install guide

  • Click Close when the process is completed

sccm 2012 sql install guide

SQL Configuration

SCCM setup verifies that SQL Server reserves a minimum of 8 GB of memory for the primary site. To avoid, the warning, we’ll set the SQL Server memory limits to 8GB-12GB (80% of available RAM).

  • Open SQL Server Management Studio
  • Right click the top SQL Server instance node
  • Select Properties
  • In the Memory tab define a limit for the minimum and maximum server memory. Configure and limit the memory to 80% of  your server available RAM. In my case I have 16GB available.
    • Minimum 8192
    • Maximum 12288

sccm 2012 sql install guide

Database Sizing

We always recommend to create the SCCM database before the setup. This is not mandatory, SCCM will create the database for you during setup but will not create it the optimal way. We strongly recommend to watch the The Top Ten Lessons Learned in Managing SQL session from MMS2013 which cover it all.

We follow the guide made by MVP, Kent Agerlund to estimate my DB sizing need. Visit his blog post and download the provided Excel file. Input your values in the blue cells and keep it for the next part. We’ll create the DB using those values using a script in the next section.

For this blog post, We’ve created a Database for 2000 clients, 2 processors, 2 cores and 16GB RAM.

sccm 2012 sql install guide

Create Database

To create the database, you can use Kent’s script and input your values (as returned previously in the Excel file) OR  use the following one which is really simple:

The Name value will become your Site Code during the SCCM installation. Be sure to select a unique Site Code.

  • **Replace all XXX value with your 3 character Site Code**
  • **Change the values of  the Filename, Size, MaxSize and FileGrowth. Change the location of the file to your SQL and Logs drives**
USE master CREATE DATABASE CM_XXX ON ( NAME = CM_XXX_1,FILENAME = 'E:\SCCMDB\CM_XXX_1.mdf',SIZE = 7560, MAXSIZE = Unlimited, FILEGROWTH = 2495) LOG ON ( NAME = XXX_log, FILENAME = 'G:\SCCMLogs\CM_XXX.ldf', SIZE = 4990, MAXSIZE = 4990, FILEGROWTH = 512) ALTER DATABASE CM_XXX ADD FILE ( NAME = CM_XXX_2, FILENAME = 'E:\SCCMDB\CM_XXX_2.mdf', SIZE = 7560, MAXSIZE = Unlimited, FILEGROWTH = 2495)





Review the Site Database properties

  • Open SQL Management Studio
  • Right click your DB, Select Properties
  • In the General tab, verify that the SQL collation name is SQL_Latin1_General_CP1_CI_AS

sccm 2012 sql install guide

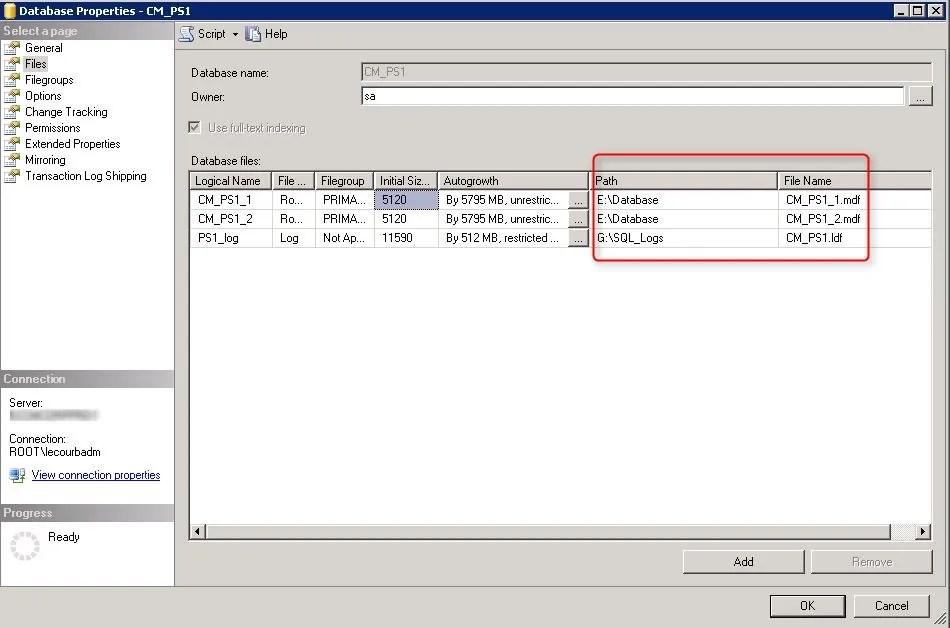

  • In the File tab, verify that your database files has been created with the script value
  • Verify that the file is located on your SQL Volume
  • Change the database owner to SA. By default the owner will be the account which created the database.

sccm 2012 sql install guide

If you find out that you made an error, you can safely delete the Database using SQL Management Studio and rerun the script.

  • Open SQL Management Studio
  • Right click your DB, Select Delete

sccm 2012 sql install guide

TempDB sizing

Run the following scripts to size the TempDB. (using the value returned by the Excel file)

**Change the values of Filename, Size, MaxSize and FileGrowth. Change the location of the file to your TempDB drives**

use master
go
alter database tempdb modify file (name='tempdev', filename='F:\SCCMTempDB\tempDB.MDF', SIZE= 4536, MAXSIZE = Unlimited, FILEGROWTH = 512)
go
alter database tempdb modify file (name='templog', filename='G:\SCCMLogs\templog.LDF', SIZE= 2268, MAXSIZE = Unlimited, FILEGROWTH = 512)
go


Review the TempDB properties

  • Open  SQL Management Studio
  • In  System Database, Right click the TempDB, select Properties
  • In the File Tab, verify that your database files has been created with the script value
  • Ensure that the TempDB and log are on the TempDB volume

sccm 2012 sql install guide

SQL Communications

To ensure proper SQL communication, verify that settings are set accordingly in SQL Network configuration

  • Open SQL Server Configuration Manager
  • Go to SQL Server Network Configuration / Protocols for MSSQLServer
  • On the Right Pane, right-click TCP/IP and select Properties
  • In the Protocol tab
    • Enable: YES
    • Listen All : NO

sccm 2012 sql install guide

  • In the IP Addresses tab
  • IP1 (which should have your Server IP)
    • Active : YES
    • Enabled : YES
  • All other IP and IP ALL
    • Active : YES
    • Enabled : NO
    • TCP Dynamic Ports : Blank value
    • TCP Port : 1433

sccm 2012 sql install guide

Once modification has been made, restart the SQL Server Service.

The server is now ready for SCCM installation.
