[SCCM] Complete SCCM 1511 Installation Guide

Publié le par damcuvelier

Prerequisite Check

Before launching the SCCM 1511 installation, we recommend to launch the Prereqchk tool in order to verify if all components are configured correctly. The SCCM 1511 installation wizard will also run this check but if you’re missing a requirement, you’ll have to go through the whole installation wizard again after fixing it. We prefer to use the standalone tool before running the setup.

To start the prerequisite check tool :

  • Open an Administrator command prompt
  • Browse to .\SMSSETUP\BIN\X64
  • Run the following command : Prereqchk.exe /AdminUI

If you follow the prerequisite guide correctly you’ll have this result :

SCCM 1511 installation





SCCM 1511 Installation

We are finally ready to launch the setup. First, reboot the server. This will make sure that the machine is not in a Reboot pending state.

SCCM 1511 installation

  • On the first screen, Click Next

SCCM 1511 installation

  • On the Getting Started screen, Select Install a Configuration Manager Primary Site and click Next

SCCM 1511 installation

  • On the Product Key screen, enter it and click Next

SCCM 1511 installation

  • On the Microsoft Software License Terms screen, accept the terms and click Next

SCCM 1511 installation

  • On the Prerequisite Licences screen, accept the License Terms and click Next

SCCM 1511 installation

  • On the Prerequisite Downloads screen, specify a location to download the prerequisite file. This folder can be deleted after setup

SCCM 1511 installation

  • On the Server Language Selection screen, select the language you want to display in the SCCM Console and Reports. You can modify language later by running setup again and select the Site Maintenance option

SCCM 1511 installation

  • On the Client Language Selection screen, select the Client language to support. You can modify languages later by running setup again and select the Site Maintenance option

SCCM 1511 installation

  • On the Site and Installation Settings screen, enter your Site Code. Use the same Site Code as you specified when creating your Database
    • Note : Site codes cannot be used more than one time in a Configuration Manager hierarchy for a central administration site or primary sites. If you reuse a site code, you run the risk of having object ID conflicts in your Configuration Manager hierarchy. This applies also if you’re doing a migration from an earlier version.
  • Enter your Site Name. This name will appear in the console so choose accordingly

SCCM 1511 installation

  • On the Primary Site Installation screen, select Install the primary site as a stand-alone site. If you have a Central Administration site, this is where you would join the Primary Site to the existing hierarchy

SCCM 1511 installation

  • On the warning, click Yes

SCCM 1511 installation

  • On the Database Information screen
  • Enter your SQL Server Name. In our case the SQL server is the same box as SCCM
  • Leave the Instance Blank
  • Enter your Database name. Once again, this must match the previously created Database in part 2
  • Leave the Service Broker Port to 4022

SCCM 1511 installation

  • On the Database Information screen :
    • Enter the path to the SQL Server data file. Locate this on the SQL Volume
    • Enter the path to the SQL Server log file. Locate this on the SQL Logs Volume.
    • I like to use the same directory where I created my database and logs (E:\SCCMDB, G:\SCCMLogs)

SCCM 1511 installation

  • On the SMS Provider Settings screen, leave the SMS Provider to the default value which is the local server. Refer to the following Technet article to read about the SMS Provider.

SCCM 1511 installation

  • On the Client Computer Communication Settings screen, select Configure the communication method on each site system role. This is where you select to have HTTPS or not on your initial Management Point and Distribution Point. This settings can be change later

SCCM 1511 installation

  • On the Site System Roles screen :
  • Check Install a Management Point
  • Check Install a Distribution Point
  • We will install both MP and DP on the same box so leave the FQDN as is
    • The Client connection drop-down is unavailable due to our previous selection

SCCM 1511 installation

  • On the Usage Data screen, click Next. This new screen basically tells that you accept that you will send some telemetry data to Microsoft

SCCM 1511 installation

  • On the Service Connection Point screen, click Next. This new role enables your deployment to download updates and new features

SCCM 1511 installation

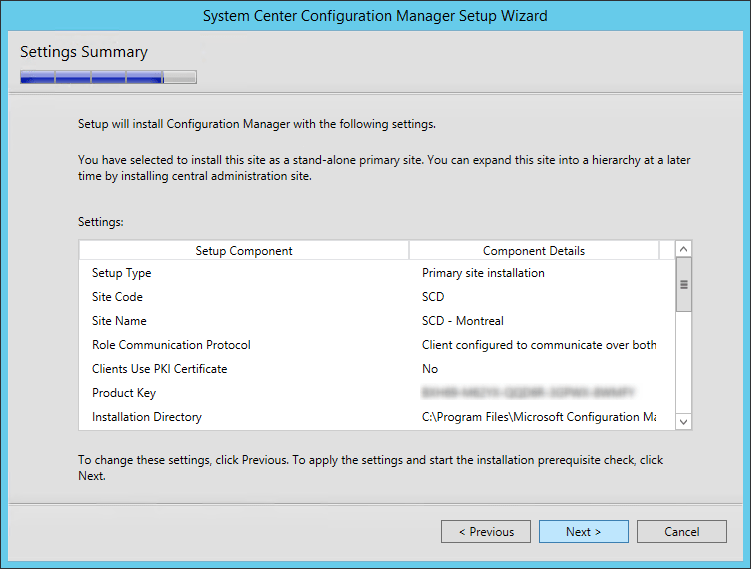

  • On the Settings Summary Screen, review your options and click Next

SCCM 1511 installation

  • On the Prerequisite Check screen, you should have no error since you’ve run it before setup, click Next

SCCM 1511 installation

  • The installation is in progress. You can count between 15 and 30 minutes depending of your server specifications

SCCM 1511 installation

  • You can follow the progress by clicking the View Log button or open the ConfigMgrSetup.log file on the C: drive

SCCM 1511 installation

  • Wait for Core setup has completed and close the wizard

SCCM 1511 installation

We’re still not done yet ! Before opening the SCCM console, we suggest to install the following tools :

CMTrace

CMTrace will become your best friend when reading log files.

  • Open the SCCM ISO
  • Browse to .SMSSETUPTOOLS
  • Click on CMTrace.exe
  • Click on YES to set is as your default log viewer

sccm 2012 r2 installation



System Center 2012 R2 Configuration Manager Toolkit

The SCCM 2012 R2 toolkit is compatible with SCCM 1511 and contains fifteen downloadable tools to help you manage and troubleshoot SCCM.

Download and install it here
